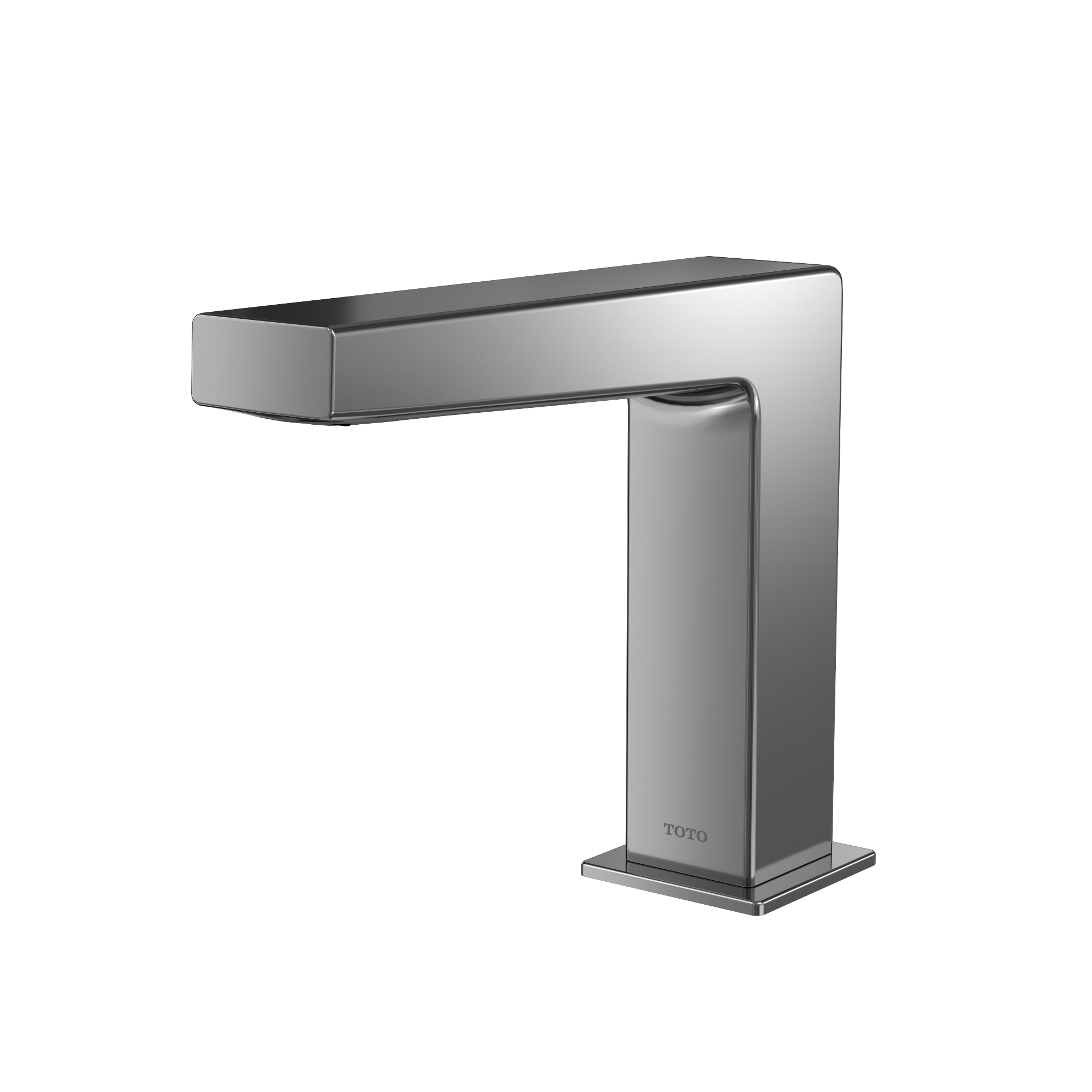

Optimize TOTO Axiom TLE25006U1#CP 0.5 GPM Touchless Faucet Spout (10-Second On-Demand, Polished Chrome)
Create a reliable, hygienic handwashing station with a slim, sensor-activated spout that meets strict conservation targets. The TOTO Axiom spout (MPN TLE25006U1#CP) delivers a 10-second on-demand cycle at 0.5 GPM —only 0.08 gallons per use. A micro-sensor under the spout head provides responsive activation without hunting for the beam, and the vandal-resistant aerated outlet helps tame splash. Pair this spout with either an ECOPOWER (self-generating) or AC-powered controller to match your project’s maintenance and infrastructure needs.
- Brand: TOTO
- MPN: TLE25006U1#CP
- Type: Axiom deck-mount touchless lavatory spout (pairs with separate controller)
- Size/Capacity: 0.5 GPM max; 10-second on-demand cycle (0.08 gpc)
- Material/Finish: Brass spout body with #CP Polished Chrome finish; vandal-resistant nozzle
- Performance: Micro-sensor under spout head; self-adjusting detection; on-demand flow stops when hands leave; water supply pressure 15–80 psi (flowing/static)
- Connections/Fit: Single-hole deck mount; faucet hole Ø 1-3/8?; max deck thickness 2?; supply interface to controller G 1/2 (½? NPSM-compatible); use with ECOPOWER controller TLE03502U1 or AC controller TLE01502U; optional mixing valves TLM10 (manual) or TLE05701U (thermostatic)
- Dimensions: Spout height approx. 4-5/8?; projection ~5-5/8? (layout-dependent—see spec diagram)
- Included: Spout body only; mounting hardware (controller, mixing valve, and supply lines sold separately)
- Certifications/Compliance: ASME A112.18.1 / CSA B125.1; NSF/ANSI 372 (low-lead); IAPMO cUPC; CEC & CALGreen compliant; ADA when installed per guidelines; AC systems meet UL 1951 / CSA C22.2 No. 14 & 68
- Warranty: 3-year limited (commercial; see TOTO terms)
Save Water & Energy
The Axiom’s 0.5 GPM, 10-second on-demand cycle uses just 0.08 gallons per use to meet CEC/CALGreen targets. Choose an ECOPOWER controller to harvest energy from water flow—no batteries or wiring—or an AC controller when line power is preferred. This flexibility helps reduce utility costs and maintenance over time.
Everyday Performance You Can Feel
A micro-sensor located beneath the spout head tracks hands precisely, so water starts when you need it and stops when you’re done. The aerated outlet provides a comfortable, splash-controlled stream that keeps sinks cleaner between custodial rounds.
Durable Materials, Easier Care
The chrome-plated brass body stands up to daily cleaning, and the vandal-resistant nozzle helps the spout maintain performance in high-traffic restrooms. With on-demand logic, there’s no run-on to wipe up—or pay for— after users walk away.
Installer-Friendly Integration
Standard rough-in details simplify planning: single-hole deck mount with a 1-3/8? hole and up to 2? deck, plus G 1/2 (½? NPSM-compatible) connections at the controller. Add TOTO’s TLM10 (manual) or TLE05701U (thermostatic) mixing valve where hot/cold blending is required.
Sized Right For Tight Vanities
With a compact body and a spout height around 4-5/8?, Axiom fits under mirrors and shelves while providing comfortable hand clearance. Refer to the spec diagram for exact reach and service space in your layout.
Code-Ready Confidence
Listings include ASME A112.18.1/CSA B125.1, NSF/ANSI 372, and IAPMO cUPC, with CEC and CALGreen compliance for water use. AC configurations add UL 1951/CSA safety listings. Install per ADA guidance for accessible operation and reach.
Choose Your Power & Controls
Pair the spout with TLE03502U1 (ECOPOWER on-demand, 0.08 gpc) or TLE01502U (AC on-demand, 0.08 gpc). For complete faucet kits, see TOTO’s T25S51 package options (e.g., T25S51E/AM/AT) that bundle spout, controller, and mixing valve.
